metric Standard Universal Joints

click on photo to enlarge

The Belden Metric Standard Joint series is a cost efficient but versatile friction bearing joint design.

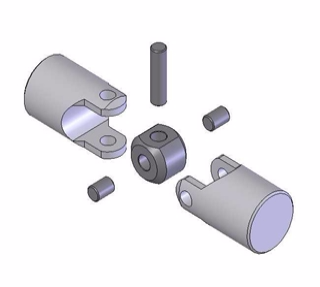

• Hardened and ground pins (1 long, 2 short)
• Pins have a knurled section that

  anchors the pins in the yoke bores

• Hardened and ground block that

  provide hardened contact faces

• Yokes available with various standard

  hub configurations including quick

  release ends.

Single Universal Joints



• Metric dimensions following DIN 808
• Operating angle for single joints up to 45°

• Various bore options available as well as quick release ends

• Wide choice of finishes available

• Product Materials:

          Yokes: Steel 1.0765
          Block and pins: Steel 1.6569 (hardened)



click on photo to enlarge

Double Universal Joints



• Metric dimensions following DIN 808
• Operating angle for double joints up to 90°

• Various bore options available as well as quick release ends

• Wide choice of finishes available

• Product Materials:

          Yokes: Steel 1.0765
          Block and pins: Steel 1.6569 (hardened)



click on photo to enlarge

Request form for universal joints

ePaper
Our request form will help you specify a detailed description of the joint you need.
