metric Needle Bearing Joints

click on photo to enlarge

The Belden Needle Bearing Joint series is equipped with roller bearings that reduce friction and eliminate play and backlash



• Needle bearings for low friction
• Superior lifetime at continuous

  applications and high rpm

• Pin&Block design style standard design
• Cross & Bearing with needle bearings

  available as well

• Yokes available in stainless steels

  as well

Single Universal Joints



The metric needle bearing universal joints are pin and block style and are equipped with bearings for increased precision, endurance and reliable performance.



• Metric dimensions following DIN 808
• Operating angle for single joints up to 45°

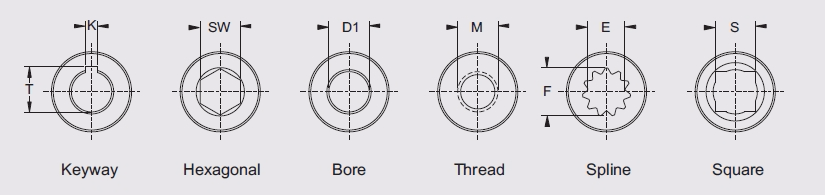

• Various bore options available as well as quick release ends

• Operation speed up to 4000 rpm

• Product Materials:

          Yokes: Steel 1.1186

          Bushings and pins: Steel 1.6569 (hardened)

          Block: Steel 1.7225

click on photo to enlarge

Double Universal Joints



The metric needle bearing universal joints are pin and block style and are equipped with bearings for increased precision, endurance and reliable performance.



• Metric dimensions following DIN 808
• Operating angle for double joints up to 90°

• Various bore options available as well as quick release ends

• Operation speed up to 4000 rpm

• Product Materials:

          Yokes: Steel 1.1186

          Bushings and pins: Steel 1.6569 (hardened)

          Block: Steel 1.7225

click on photo to enlarge

Request form for universal joints

ePaper
Our request form will help you specify a detailed description of the joint you need.
