inch Stainless Steel Joints

click on photo to enlarge

The Belden Stainless Steel Joint series is made from high quality corrosion resistant steels



• Friction (plain) bearing
• All components made from stainless steel
• Yoke standard material is AISI 303
• Pins & block standard material is AISI 416 (components hardened & grounded)
• Various materials are available like 304, 316L, 416, 420, 17-4, 15-5
• Large pin/small design with snap ring (similar to Heavy Duty Series)
• Hardened & ground yoke tips possible for 416, 420, 17-4, 15-5 stainless steel

Single Universal Joints



The standard stainless steel joint is made from AISI 303 and AISI 416 stainless steel. The joint yokes are 303 and the pins & blocks are hardened 416 stainless steel to provide higher strength and improved wear resistance.
Yokes can be made from 303, 304, 316L, 416 and 420 stainless steel to meet the customer’s exact application specifications. For additional environmental protection, pins & blocks can be covered by lubricant retaining boots or manufactured from higher grades of stainless steel.



• Corrosion resistant
• Standard operating angles for sinle joints up to 45°
• Can be booted for further environmental protection
• Product materials:
       Yokes - AISI 303 / DIN 1.4305
       Block and pins - AISI 416 /  DIN 1.4005 - hardened

click on photo to enlarge

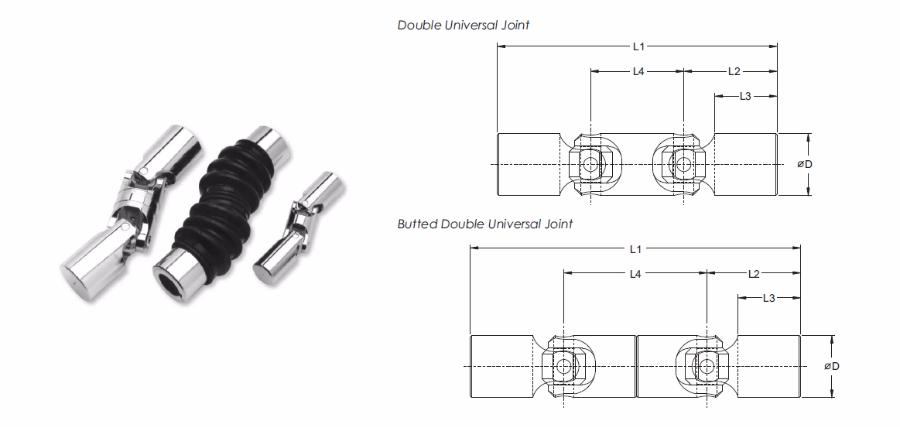

Double Universal Joints on Request



The standard stainless steel joint is made from AISI 303 and AISI 416 stainless steel. The joint yokes are 303 and the pins & blocks are hardened 416 stainless steel to provide higher strength and improved wear resistance.
Yokes can be made from 303, 304, 316L, 416 and 420 stainless steel to meet the customer’s exact application specifications. For additional environmental protection, pins & blocks can be covered by lubricant retaining boots or manufactured from higher grades of stainless steel.



• Also available as a Butted Double Universal Joint

• Corrosion resistant
• Standard operating angles for sinle joints up to 90°
• Can be booted for further environmental protection
• Product materials:
       Yokes - AISI 303 / DIN 1.4305
       Block and pins - AISI 416 /  DIN 1.4005 - hardened

click on photo to enlarge

Request form for universal joints

ePaper
Our request form will help you specify a detailed description of the joint you need.
