inch Heavy Duty Joints

click on photo to enlarge

Heavy Duty Joint series is a cost-effective high quality joint for multiple standard applications.



• Friction (plain) bearing
• Made from high grade alloy steels

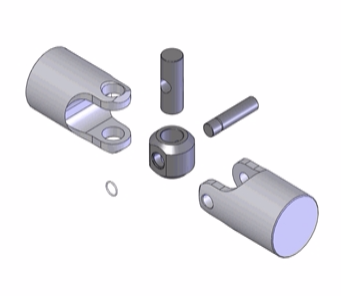

• Large pin/small pin design with snap ring
• Hardened & ground yoke tips
• Hardened & ground block & pins

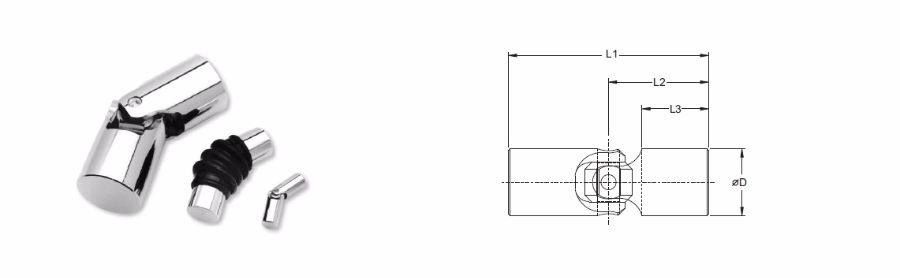

Single Universal Joints



The Belden single pin & block universal joint is manufactured from high-grade alloy steel for increased durability and better performance than standard industrial-grade models. All components are heat treated, precision machined and ground to close tolerances. The Heavy Duty, High Strength or Leveler Strength universal joint provides exceptional service life in the most demanding applications. All joints are available with or without a lubricant retaining boot.



• High grade-alloy steel
• Standard operating angles for the single joints up to 45°
• Wide choice of hub configurations and finishes

• Product materials:
       Yokes - AISI 1144 / ~DIN 1.0727 - yoke tips induction hardened
       Block and pins - AISI 8620 /  DIN 1.6523 - hardened

click on photo to enlarge

Double Universal Joints



The Belden double pin & block universal joint is manufactured from high-grade alloy steel for increased durability and better performance than standard industrial-grade models. All components are heat treated, precision machined and ground to close tolerances. The Heavy Duty, High Strength or Leveler Strength universal joint provides exceptional service life in the most demanding applications. All joints are available with or without a lubricant retaining boot.



• Also available as a Butted Double Universal Joint

• High grade-alloy steel
• Standard operating angles for the double joints up to 90°
• Wide choice of hub configurations and finishes

• Product materials:
       Yokes - AISI 1144 / ~DIN 1.0727 - yoke tips induction hardened
       Block and pins - AISI 8620 /  DIN 1.6523 - hardened

click on photo to enlarge

Request form for universal joints

ePaper
Our request form will help you specify a detailed description of the joint you need.
