metric Precision Universal Joints

click on photo to enlarge

The Belden Metric Precision Joint series is a precise and versatile friction bearing joint design.



• Hardened and ground pins (1 long, 2 short )
• Pins are fixed with a screw that allows

  to take the joint apart

• Hardened & precision ground bushings

  are pressed into the yoke bores

  to ensure minimal play.

• Hardened and ground block that

  provide hardened contact faces

• Yokes available with various standard

  hub configurations including quick

  release ends.

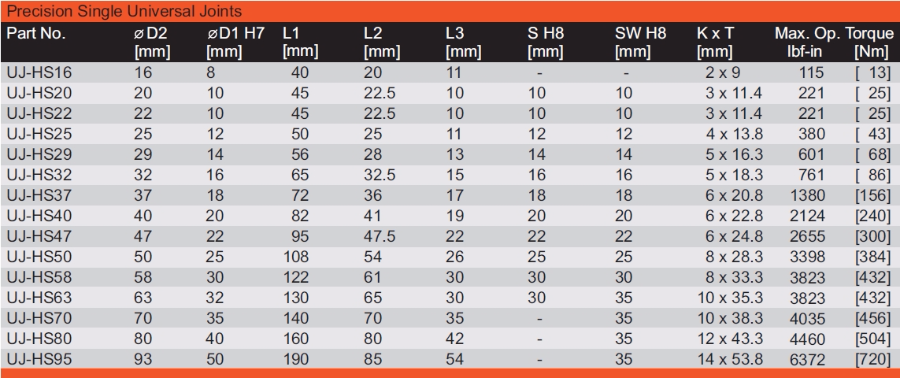

Single Universal Joints



The metric high strength (precision) universal joints are pin and block style and are equipped with hardened bushings for increased endurance and reliable performance.



• Metric dimensions following DIN 808
• Operating angle for single joints up to 45°

• Various bore options available as well as quick release ends

• Wide choice of finishes available

• Product Materials:

          Yokes: Steel 1.0765

          Bushings and pins: Steel 1.6569 (hardened)

          Block: Steel 1.7225

click on photo to enlarge

Double Universal Joints



The metric high strength (precision) universal joints are pin and block style and are equipped with hardened bushings for increased endurance and reliable performance.



• Metric dimensions following DIN 808
• Operating angle for double joints up to 90°

• Various bore options available as well as quick release ends

• Wide choice of finishes available

• Product Materials:

          Yokes: Steel 1.0765

          Bushings and pins: Steel 1.6569 (hardened)

          Block: Steel 1.7225

click on photo to enlarge

Request form for universal joints

ePaper
Our request form will help you specify a detailed description of the joint you need.
