metric Stainless Steel Joints

click on photo to enlarge

The Belden Metric Stainless Steel Joint series is a cost efficient but versatile friction bearing joint design.



• Completely made from AISI 303
• Pin configuration 1 long & 2 short
• Pins have a knurled section that

  anchors the pins in the yoke bores

• Yokes available with various standard

  hub configurations including quick

  release ends.

Single Universal Joints



• Metric dimensions following DIN 808
• Operating angle for single joints up to 45°

• Various bore options available as well as quick release ends

• Product Materials: Steel 1.4305

click on photo to enlarge

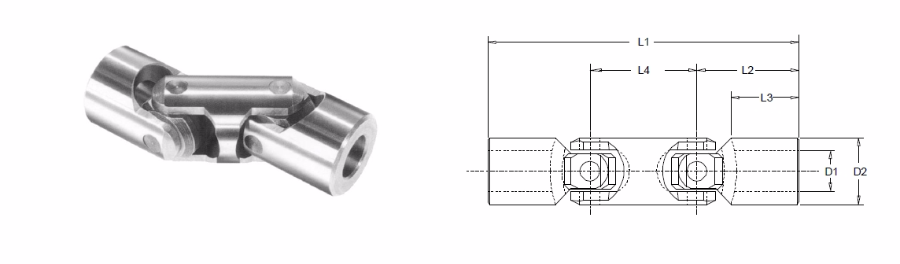

Double Universal Joints



• Metric dimensions following DIN 808
• Operating angle for double joints up to 90°

• Various bore options available as well as quick release ends

• Product Materials: Steel 1.4305

click on photo to enlarge

Request form for universal joints

ePaper
Our request form will help you specify a detailed description of the joint you need.
