inch Neadle Bearing Joints

click on photo to enlarge

The Belden Needle Bearing Joint series is equipped with roller bearings that reduce friction and eliminate play and backlash



• Needle bearings for low friction
• Superior lifetime at continuous applications and high rpm
• Yokes made from fatigue proof steel
• Cross & Bearing style standard design
• Pin & block design with needle bearings available as well
• Yokes available in stainless steels as well

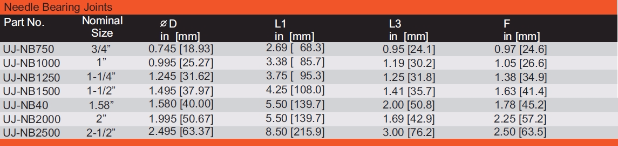

Single Universal Joints



The needle bearing universal joint is fitted with pre-lubricated needle bearings. Needle bearing universal joints are designed to maintain low backlash for critical positioning applications required by robotics and instrumentation and are excellent for continuous operation applications. The joint has rigid axial stiffness for push/pull loads and can handle higher angles and RPM.



• Operation at high RPM

• Standard operating angles for sinle joints up to 45°
• Low backlash
• Continuous operation

• Product materials:
       Yokes - AISI 1144 / ~DIN 1.0727 - yoke tips induction hardened
       Block and pins - AISI 8620 /  DIN 1.6523 - hardened

click on photo to enlarge

Double Universal Joints on Request



The needle bearing universal joint is fitted with pre-lubricated needle bearings. Needle bearing universal joints are designed to maintain low backlash for critical positioning applications required by robotics and instrumentation and are excellent for continuous operation applications. The joint has rigid axial stiffness for push/pull loads and can handle higher angles and RPM.



• Also available as a Butted Double Universal Joint

• Operation at high RPM

• Standard operating angles for double joints up to 90°
• Low backlash
• Continuous operation

• Product materials:
       Yokes - AISI 1144 / ~DIN 1.0727 - yoke tips induction hardened
       Block and pins - AISI 8620 /  DIN 1.6523 - hardened

click on photo to enlarge

Request form for universal joints

ePaper
Our request form will help you specify a detailed description of the joint you need.
